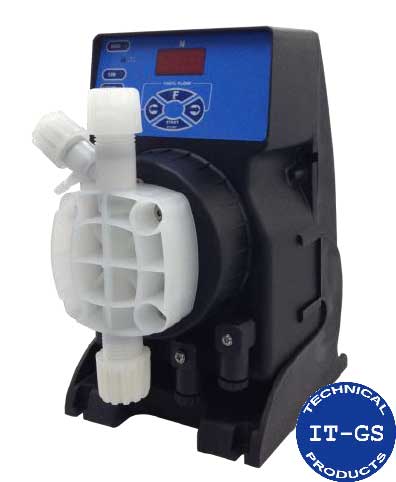

Membran dosage pump

Technische Merkmale:

Dose performance:

0 to 20 l/h

max. pressure:

20 bar

Electric tension:

230V Standard; 120V, 12VDC, 24VAC, 24VDC

Idle stroke digit:

max. 120 hubs/min.

Pump head:

PP or PVDF with lips- or ceramic-ball-valve, PVC only for models 20 l/h and for 20 bar
valve sealings: VITON or EPDM
manuel exhaust for models til 15 l/h
automatic exhaust optional available

Membran:

PTFE

Accessories:

PP or PVDF dose valve, foot valve,
each 2m sucking/pressure tube, screws and dowels for a wall montage

Montage:

wall montage as standard, optional foot montage (DLXB)

Stroke length adjustment:

optional for DLXB models only (foot montage) available

Available DLX-models:

MA/AD

analog manual dose with double scale adjustment (0-100% & 0-20%), optional: low level alarm

MA/MB

digital manual control (0-100%); low level alarm

CC/M

0/4-20 mA proportional control, low level alarm

VFT/MBB

proportional dose control with stroke digit multiplicator (1xN),
stroke digit multiplicator with memory (1xN-M) and stroke digit divider (1:N),
digital manual dose, low level alarm

MF/M

digital manual dose control (0-100%),
proportional dose control with stroke digit multiplicator (1xN),
stroke digit multiplicator with memory (1xN-M) and stroke digit divider (1:N), 0/4-20 mA proportional control,
low level alarm, timer clock, alarm relais output

pH-Rx-Cl/M

integrated control of pH, Redox and chlorine (ppm);
0-14 pH-measurement range;
-1000 - +1400 mV Redox-measurement range;
0-2, 0-20 oder 0-200 ppm, chlorine-Messbereich;
0/4-20 mA Ausgang; alarm relais output; low level alarm

pH-Rx/MBB

integrated control of pH, Redox;
0-14 pH-measurement range;
-1000 - +1400 mV Redox-measurement range;
On/Off proportional dose mode; alarm relais output; low level alarm

CD/M

integrated conductivity regulation(0-1.000 μS or 0-10.000 μS measurement range);
On/Off proportional dose mode; 0/4-20 mA output; 1/2" conductivity sensor containing;
low level alarm

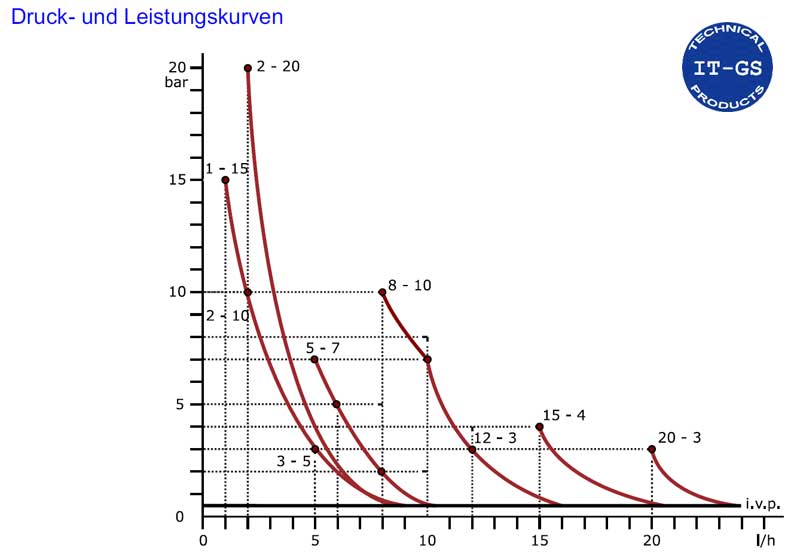

Technical data:


Modell	dose- capacity (L/H)	max. pressure (bar)	stroke volume (ml)	max. stroke digit (imp/minute)	Media connection (IDxAD mm)	electrical connection
01-15	1	15	0,14	120	4x6	230V, 50-60 HZ
	2	10	0,28
	3	5	0,42
02-20	2	20	0,28	120	4x6	230V, 50-60 HZ
05-07	5	7	0,69	120	4x6	230V, 50-60 HZ
	6	5	0,84
	8	2	1,11
08-10	8	10	1,11	120	4x6	230V, 50-60 HZ
	10	7	1,39
	12	3	1,67
15-04	15	4	2,08	120	4x6	230V, 50-60 HZ
20-03	20	3	2,6	120	4x6	230V, 50-60 HZ
