This pump very often will be in use in a painting line as waste water pump. It is able to equip it with a special part-reducing wheel, that cuts larger and bunded paint particles and transport it optimal to a separating machine.
This pump of the construction serie IPS is a self sucking, one step waste water pump with half open wheel for transport of water or waste water. The IPS-40 wheels are turned in the sucking area, that availables a transport of larger solit pigments til 20mm. The pumps sucks itself til 6 mters sucktion height after one time filling. All pumps are equipped with a changable tribological plate.
Technical informations:
Power: 400 V / 1,1KW
Capacity: 100l/min bzw. 6m³/h
![](/images/zubehoer/Pumpen/ips-40/ips-40_zeichnung_k.jpg)
|
![](/images/zubehoer/Pumpen/ips-40/ips-40_teileliste_k.jpg)
|
drawing of IPS-40
|

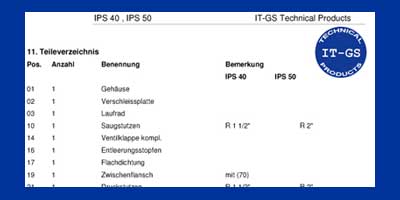

part list of IPS-40
|
![](/images/zubehoer/Pumpen/ips-40/ips-40_leistung_k.jpg)
|
![](/images/zubehoer/Pumpen/ips-40/ips-40_massblatt_k.jpg)
|

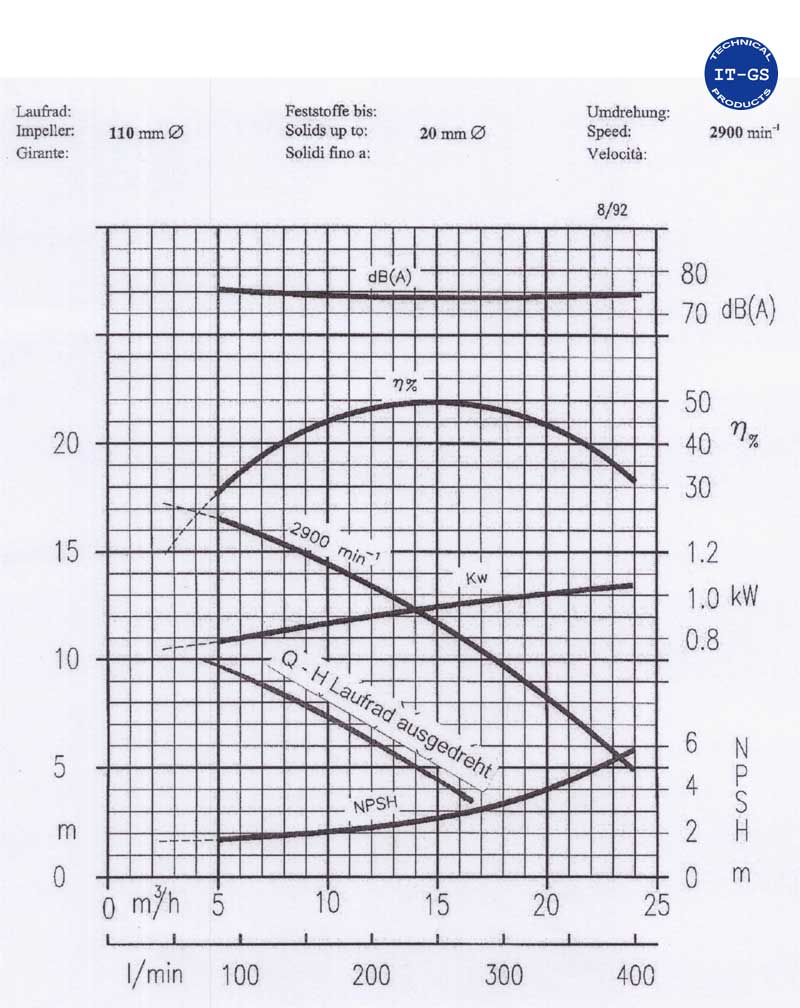

diagramm
|

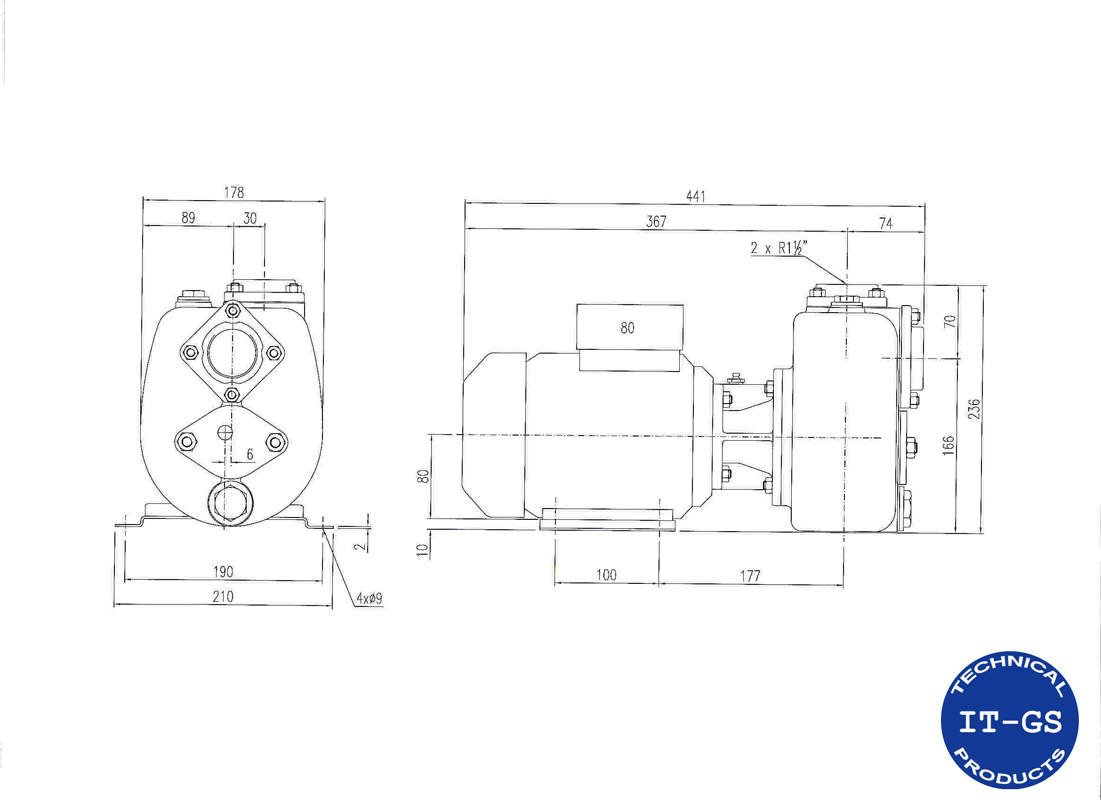

measurement
of IPS-40
|
|
|
Pictures of
spare parts:
|
|

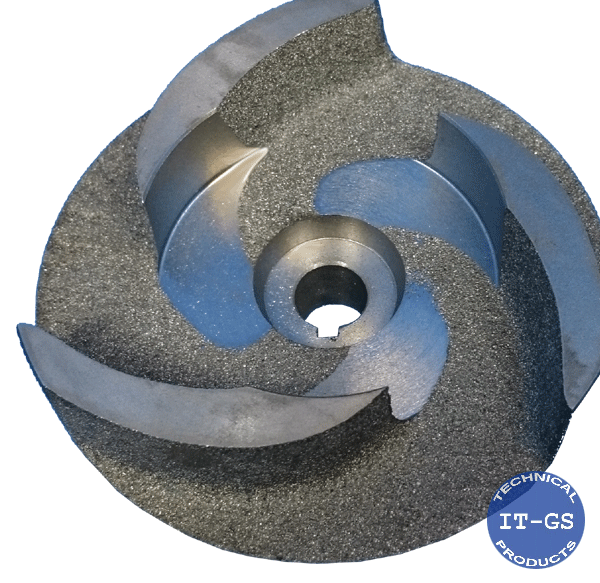

![](/images/zubehoer/Pumpen/ips-40/ips40ET03_laufrad.png)
|

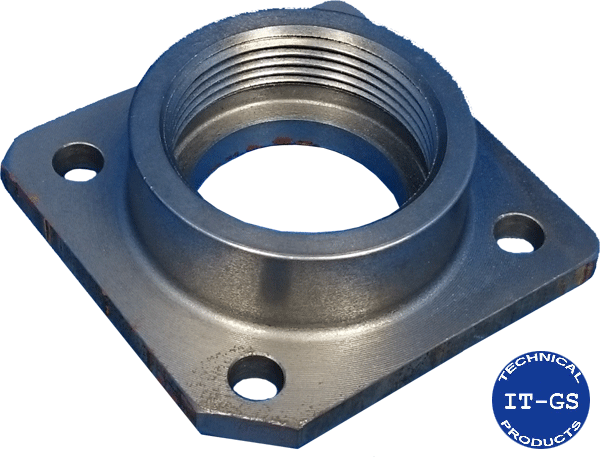

![](/images/zubehoer/Pumpen/ips-40/ips40ET10_ansaugstutzen.png)
|

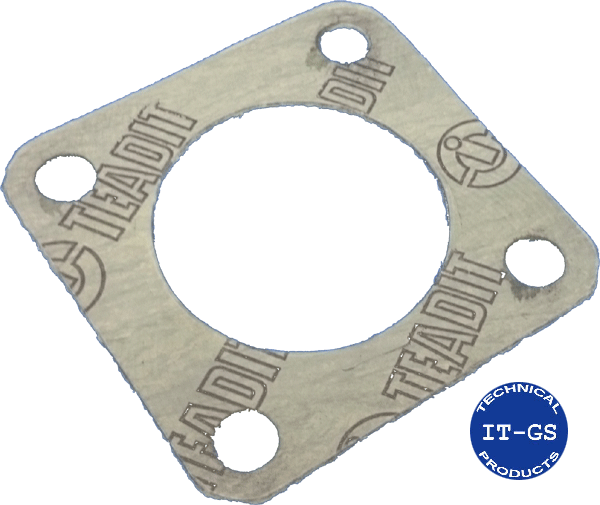

![](/images/zubehoer/Pumpen/ips-40/ips40ET22_dichtung_druckstutzen.png)
|

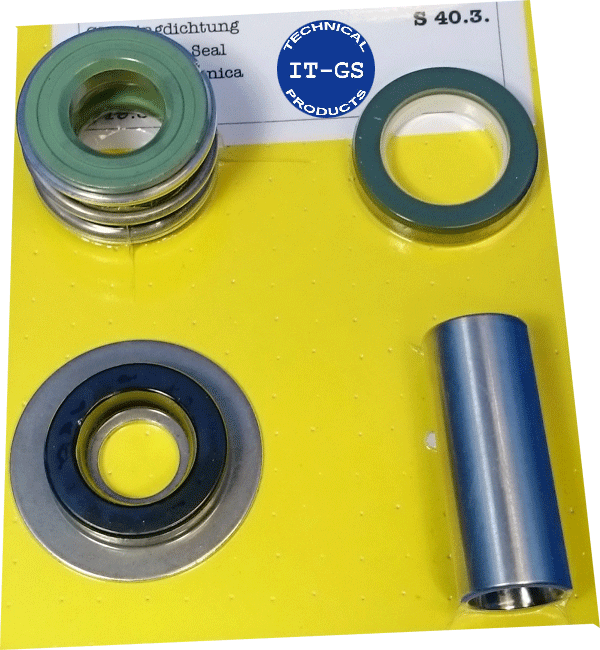

![](/images/zubehoer/Pumpen/ips-40/ips40ET25_gleitringdichtsatz.png)
|

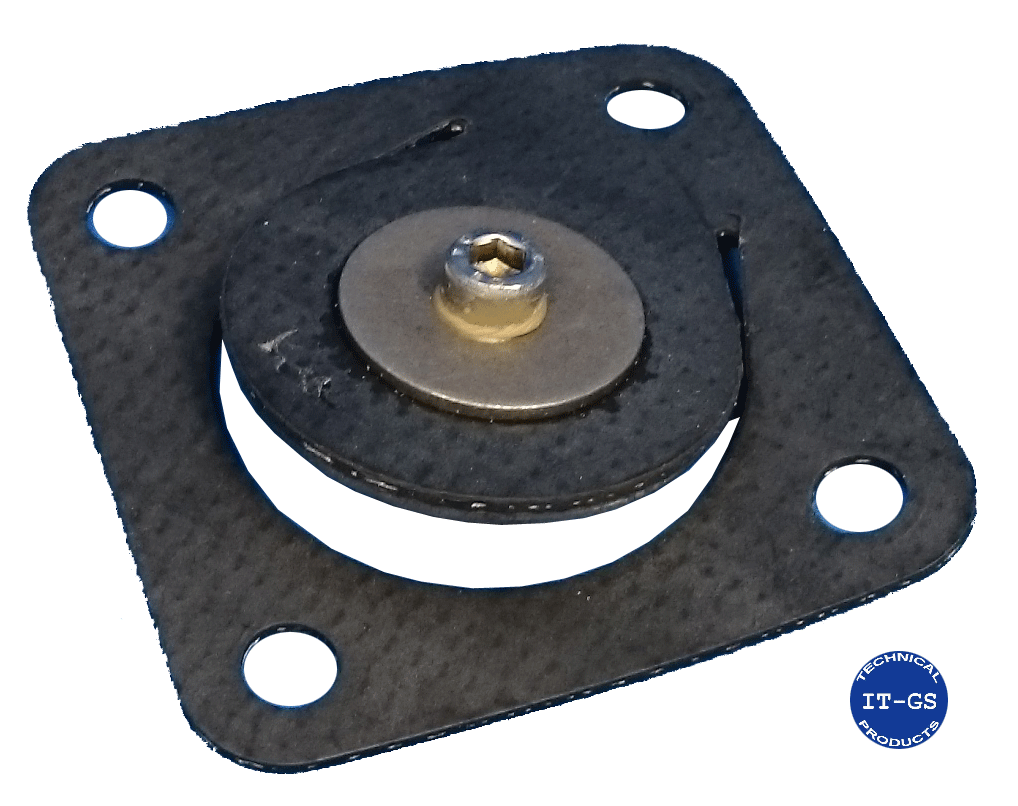

![](/images/zubehoer/Pumpen/ips-40/ips40ET14_ruechschlagklappe.png)
|

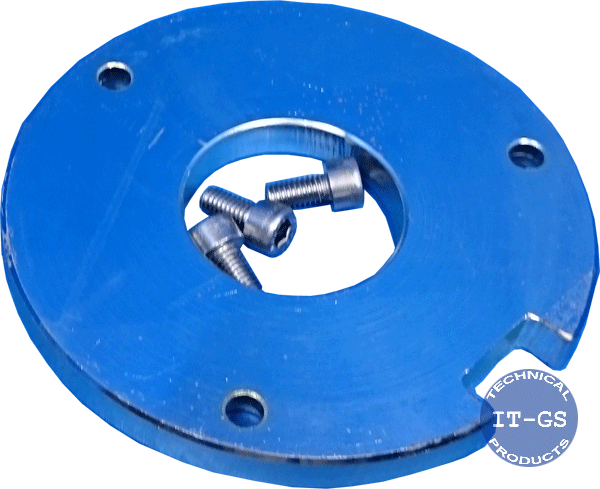

![](/images/zubehoer/Pumpen/ips-40/ips40ET02_verschleissplatte.png)
|

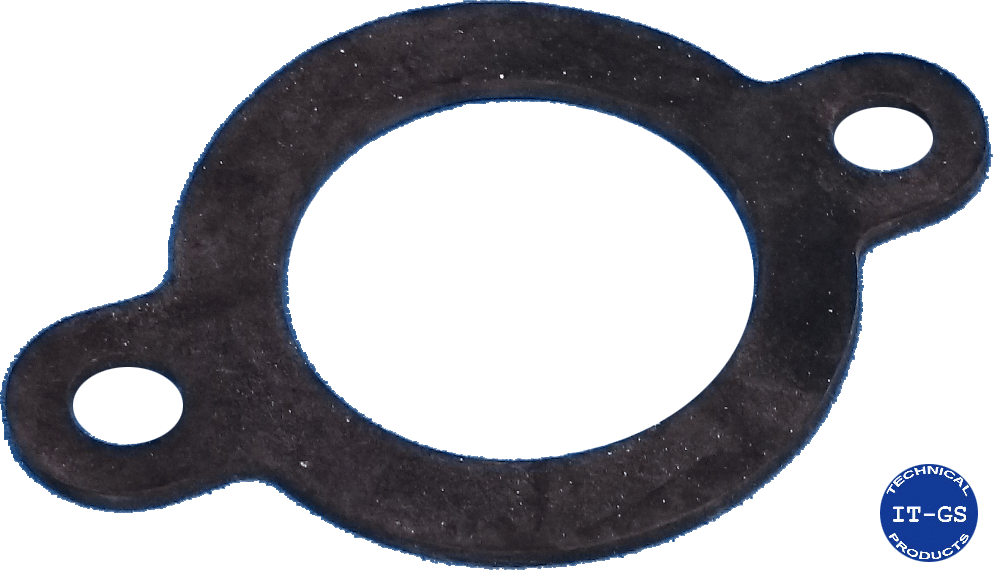

![](/images/zubehoer/Pumpen/ips-40/ips40ET17_dichtung_reinigungsdeckel.png)
|

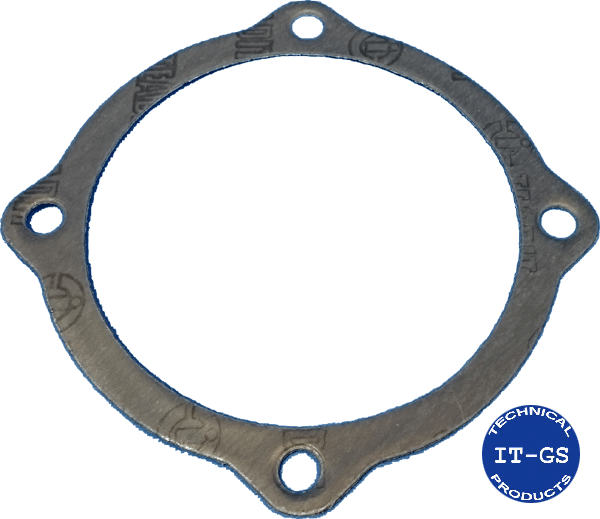

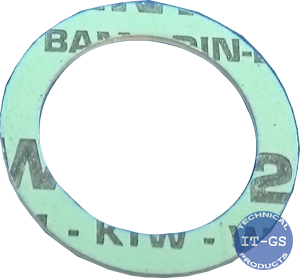

![](/images/zubehoer/Pumpen/ips-40/ips40ET43_gehaeusedichtung.png)
|
![](/images/zubehoer/Pumpen/ips-40/ips40ET24_dichtung_verschlussschraube.png)
|
|
|
