Glue pumps

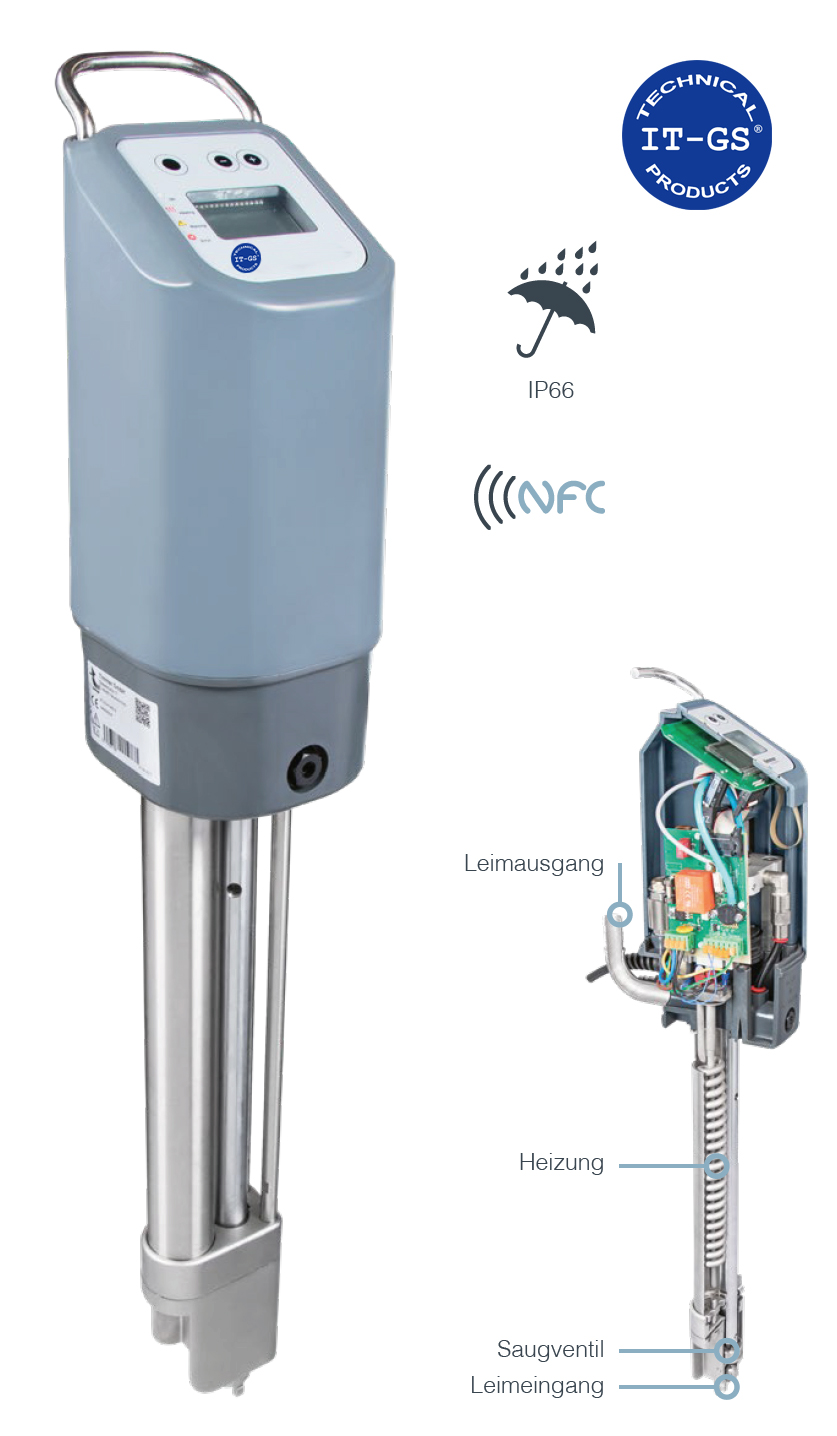

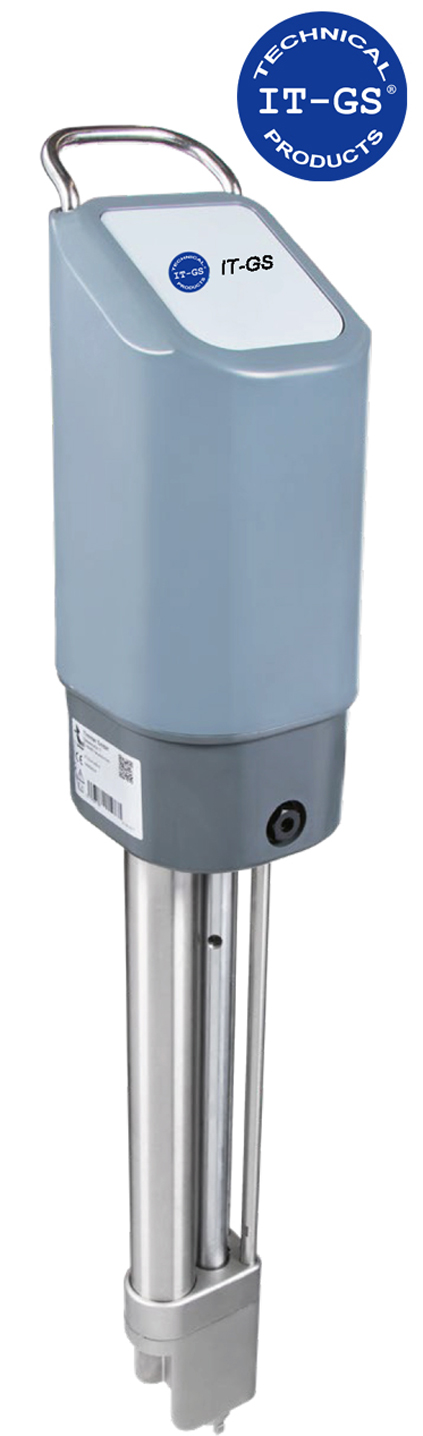

Glue pump with heater
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Our glue pump is a pneumatic moved piston pump with integrated heater and electronic control, what can transport glue in both moves of the piston. The hub rate (max. 2 Hz) can shown in the display. As soon as the pump is started, the transport of glue begins immediately and it will be realizzed by a suction valve and a pressure valve. The transport capacity will be adjusted by a valve on outlet air. Advantage:• Easy adjustment of the glue temperature on the screen Fields of application:On all places, where a labeling is necessary by filling of bottles, doses, glasses and more.
Technical data:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| case upper part | ABS |
| case lower part | POM |
| case suction foot | stainless steel |
| liquide valve balls | stainless steel |
| heater tube | stainless steel |
| piston rod | stainless steel |
| heater | stainless steel |
| pull rod(2 pcs) | stainless steel |
| bead (19 mm) | stainless steel |
| handle | stainless steel |
| suction and pressure valves | FKM |
| O-ring | FKM |
Programmiermöglichkeiten:
• temperature screen C°/ F
• pre choice media temperature
• hub count
• hub frequency screen

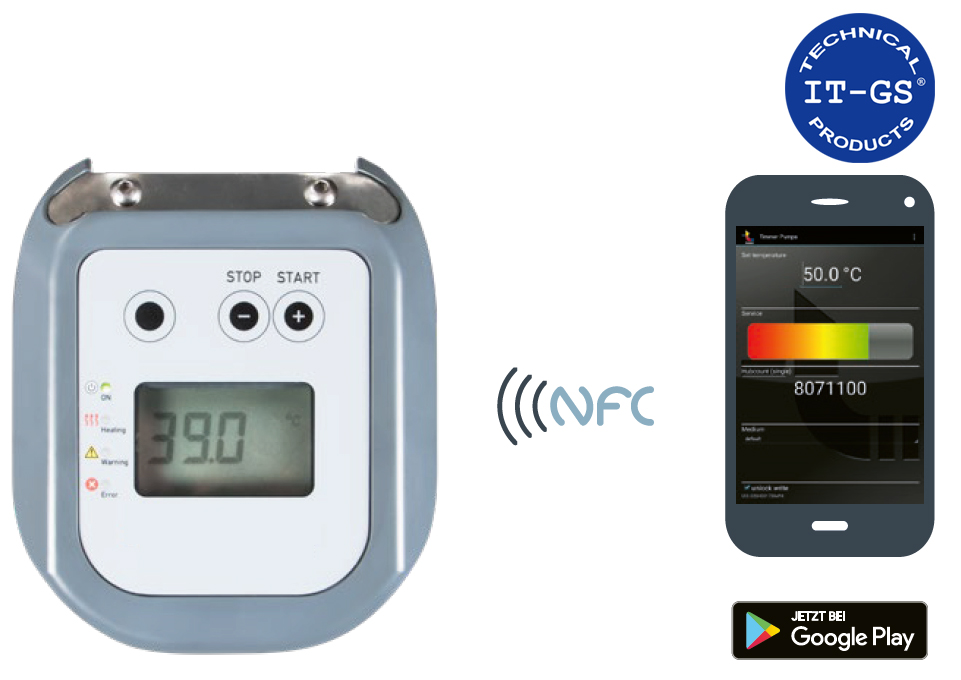

• NFC: data transfer via android-smartphone or -tablet
• maintenance interval screen
Elecric data:
| Electrinc connection (110 V - version available) |
200 - 240 V, 50/60 Hz |
|
wattage |
approx. 950 W by max. heater capacity |
| temperature control | electronic |
| temperature area | adjustable to +50 °C |
| temperature adjustment | via display with foil keyboard/ App |
| case | IP66 |
| SPS-connection | available |
Pneunatic Data:
| compressed air connector | plug nipple 7,2 NW |
| operating pressure | 3 - 6 bar filtered compressed air |
| air consumption | max. 170 l/min by max. capacity |
| power unit | 5/2-way valvel, electic |
Media:
The pump made for transport different liquides (media). The resistance of media is to proof inindividual case. In this questions please use our support team.

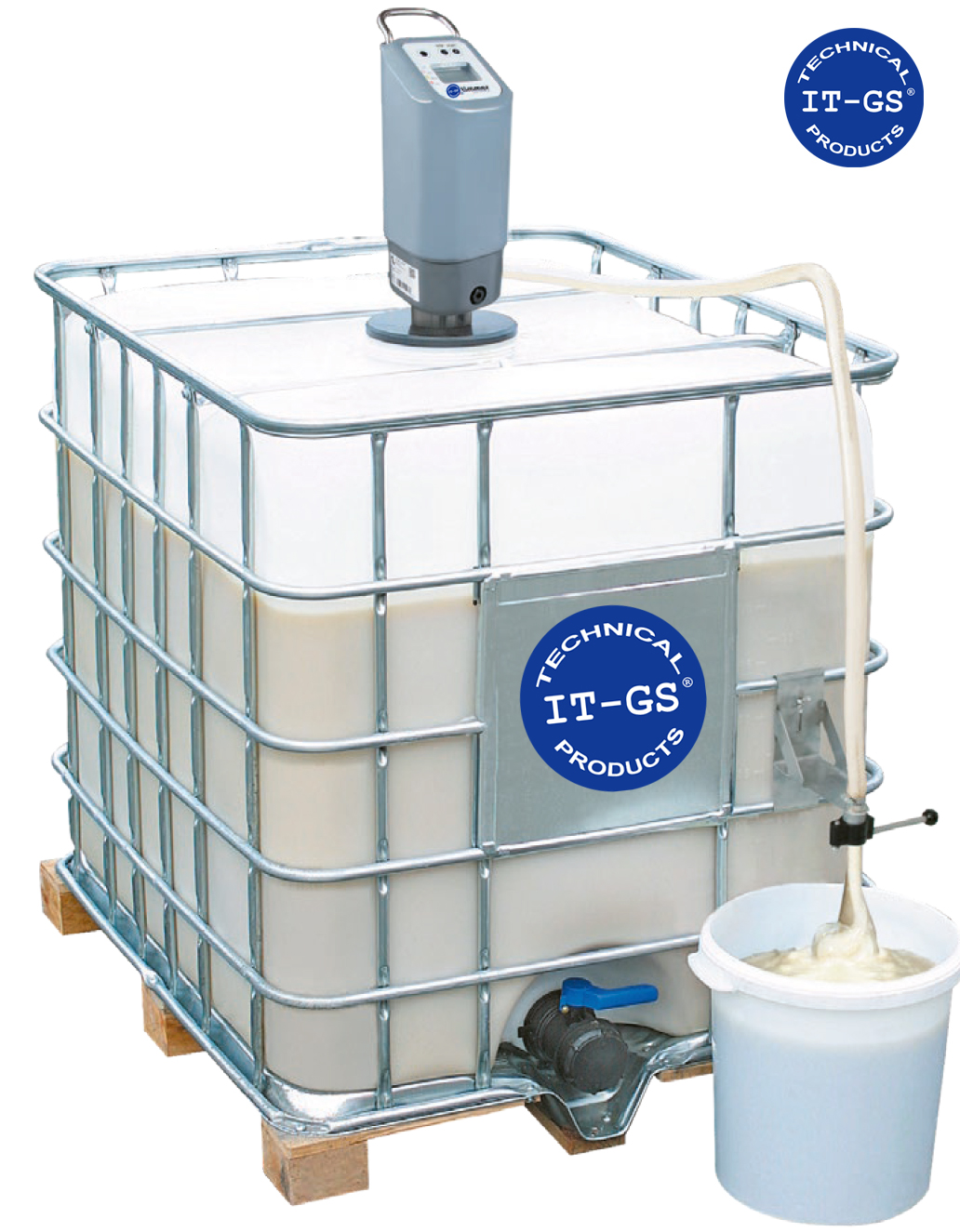

The glue pump with heater is available as container pump as well.

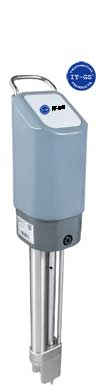

Glue pum without heater:
Ther version will be in use, when an aditional heating of the media is not necessary.
The transport capacity of the media will adjusted by a outlet air valve.
Advantage:
• water proof (IP66)
• very good cleaning and flushing behavior (reduce the death space capacity)
• low compressed air usage
Technical data:
| drive | pneumatic |
| drive principle | self sucking |
| suction height | approx. 2 m (20 °C, by water) |
| transformation ratio | 3,8 : 1 |
| fluid quantity by water | max. 33 cm³ per dobble hub (4 l/min / 240 l/h bei 2 Hz) |
| viscolity of media | max. 100.000 mPas |
| low pulsation |
media transport in suction- and in |
| connection sucking side | sucking tube (standard length 420mm) |
| connection pressure side | socket bead, 19 mm |
| weight | 6,9 kg |
| hub spped |
max. 2 Hz |
Material:
| case upper part | ABS |
| case lower part | POM |
| case suction foot | stainless steel |
| liquide valve balls | stainless steel |
| tube | stainless steel |
| piston rod | stainless steel |
| pull rod(2 pcs) | stainless steel |
| bead (19 mm) | stainless steel |
| handle | stainless steel |
| suction and pressure valves | FKM |
| O-ring | FKM |
Pneumatic data:
| compressed air connector | plug nipple 7,2 NW |
| operating pressure | 3- 6 bar filtered compressed air |
| air consumption | max. 170 l/min by max. capacity |
| power unit | 5/2-Wege Ventil, pneumatic |
Media:
The pump made for transport different liquides (media). The resistance of media is to proof inindividual case. In this questions please use our support team.
Available accessories:
 |

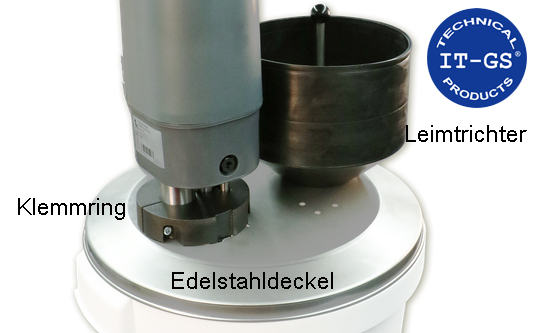

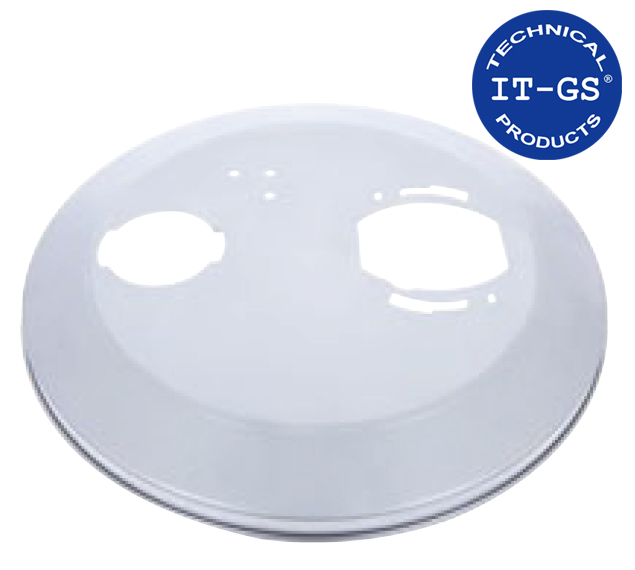

glue top complete |
 |

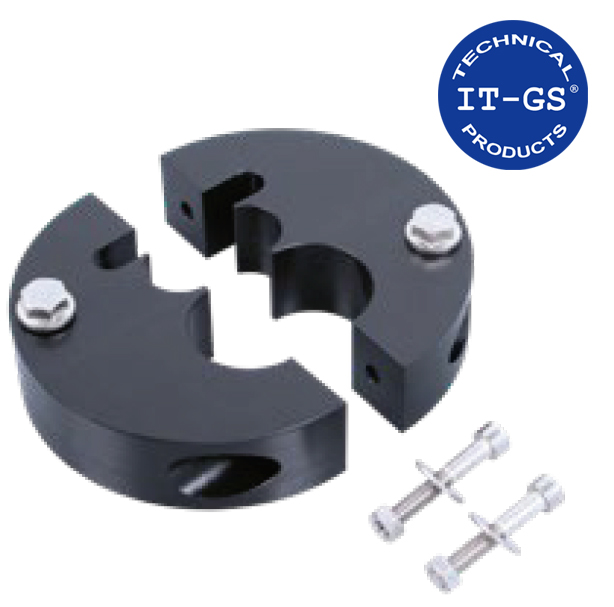

mounting ring |
 |
glue top alone |
 |

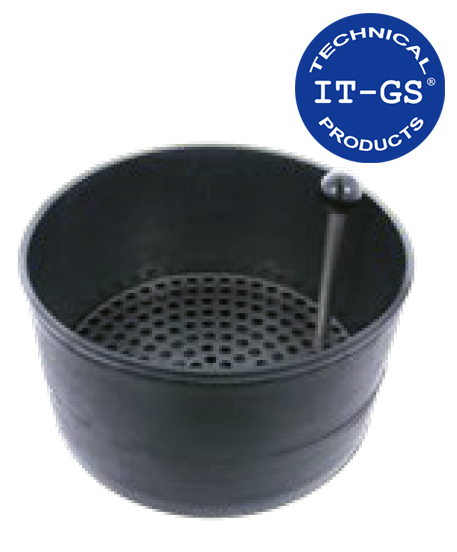

glue cone with dobble sieve of stainless steel |
 |

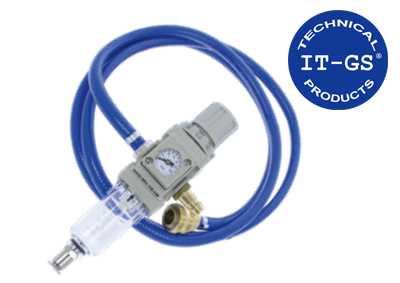

compressed air connection unit |
 |

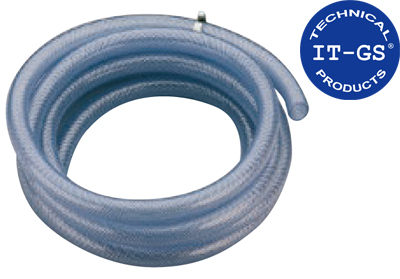

product tube |
