Measuring out pump





Measuring out pump- coagulation pump



This barrel pump very often will be used to transport coagulants and flocculants, but there are a lot of other applications, where this kind of pump is very usefull. This measuring out pump is also available in a special sealed version. In this case you can use it to transport acidic or alcaline solutions.

Technical data:

--integrated pneumatic and eletrical control
--low risc of operational pollution of the valves
--better liquide transport
--high vacuum by sucking
--simple using
--low cost
--low noice

Function:

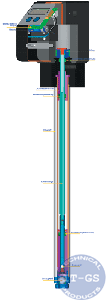

This pump is a self sucking, pneumatic activated piston measuring out pump. The interaction will be realised from the the air piston to the liquide piston, inside of the sucking tube. The pump strokes will be realised by a battery powered electronic control and a 3/2 ways Piezo valve in connection to a pneumatic motor.


General data:

--drive:pneumatic
--drive principle: self sucking - volumetric
--drive piston: ø 40 mm
--liquide piston: ø 12 mm
--transformation ratio: 11:1
--piston stroke: 43 mm
--fluid quantity by water: 6 cm³ per double stroke (0,18 l/min / 10,8 l/h)
--stroke quantity: max. 30 strokes/min
--viskosity: fluid transport til approx. 100.000 mPas
--pulsation: low
--sucking side- connection: sucking tube (standard lenght 630mm)
--pressure side- connection: tube NW 9 mm - 3/8"
--temperature - fluid: max. 70 °C
--sucking height: self sucking approx. 5m
--construction lenght total: 805 mm (ask for other lenghts)
--weight: 2,5 kg
--patent pending: yes- Made in Germany

Pneumatic data:

--compressed air connection: PU tube 8/6 mm G1/4"
--operating pressure: 4 - 6 bar filtered compressed air
--compressed air consumption: max. 15 l/min by continuous operation
--magnetic valve: 3/2-ways Piezo valve

Electical date:

--battery: 3,6 V for Ex-Safety
--protection category: IP44
--Ex-Safety: PTB02 ATEX 2196

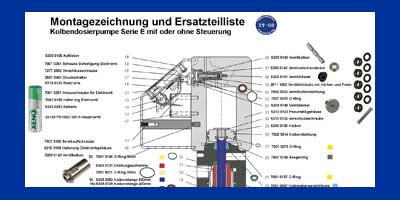

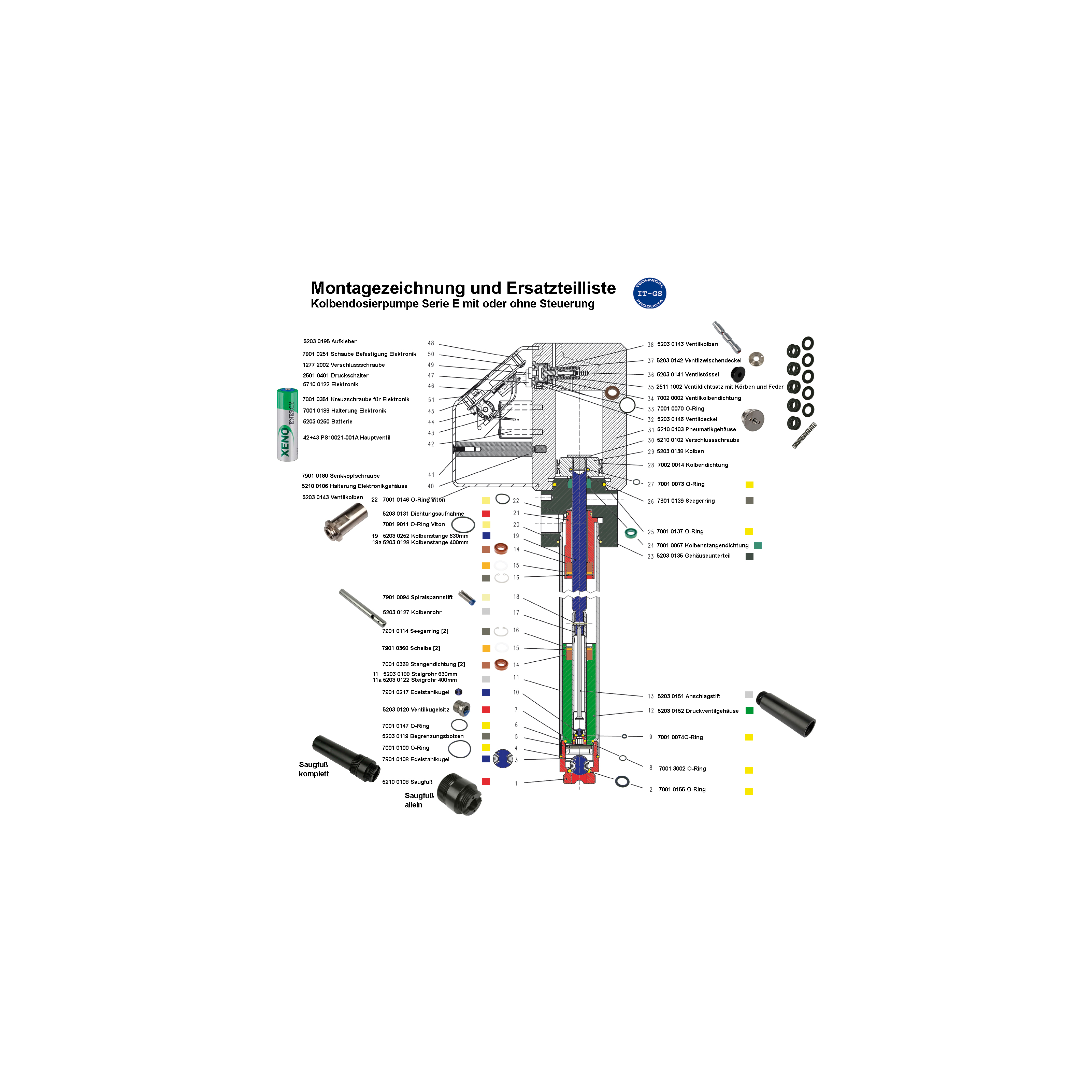

Drawing with spare parts:Teilezeichnung mit Ersatzteilliste

Picures of spare parts:


Saugfuß allein Saugfuß komplett O-Ring O-Ring
O-Ring Ventilkugelsitz O-Ring O-Ring
Druckventilgehäuse Anschlagstift Stangendichtung Scheibe

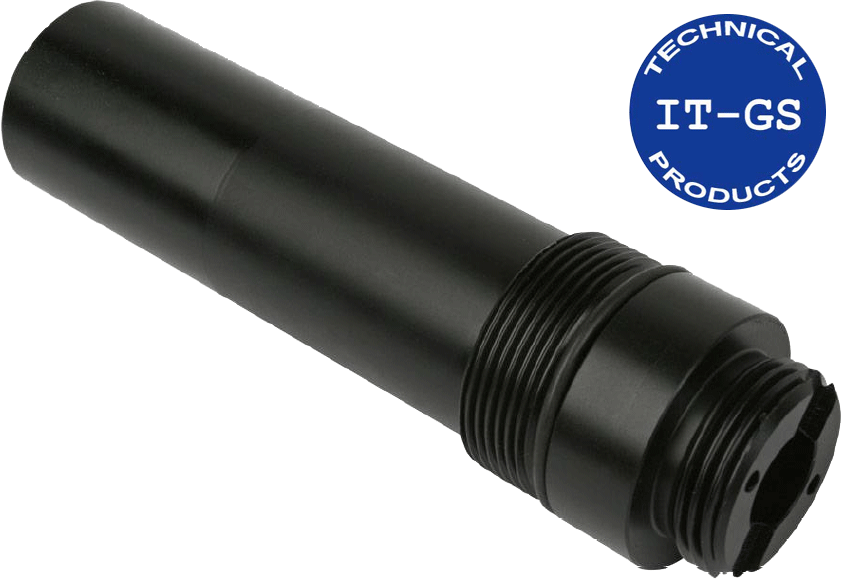

Sicherungsring Kolbenrohr O-Ring Dichtungsaufnahme VA

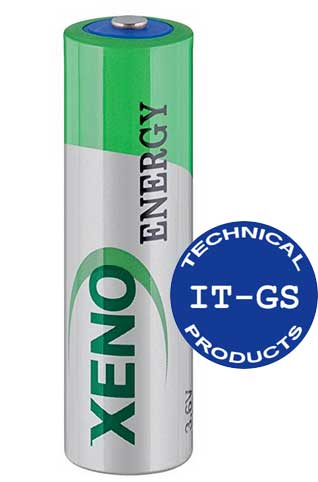

Kolbenstangendichtung O-Ring O-Ring Batterie 3,6V, 2400mA

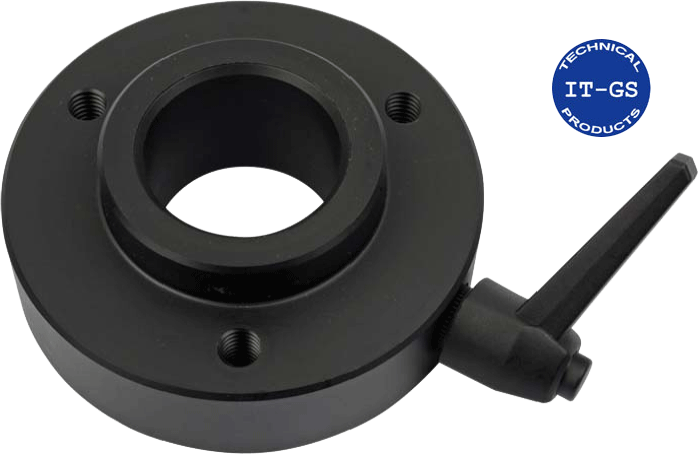

Montageklemmring Saugrohrverlängerung

" "
