Spraying guns - cleaning machine, also for water based paints, automatic und manuel
Safe a lot of time and costs by cleaning the spraying guns with a foll automatic cleaning system. A cleaning cycle lates 1-10 minutes
- by more as one color change per day you can lose more as one hour of valued working time.
- according of the cycle operation of the solvent in the machine the solvent deficit will be reduced til 90%.
- the imposition of the respiratory tract according solvent vapors will be reduced a lot
All machines can be placed in an EX-area. The suction will realizzed by a Venturi-jet, which works with compressed air
|
|
Automatic
automatic cleaning with a power box in 1-5 minutes. The washing cycle works by preset time and quantity of cleanerfull automatically.
- width: 1.000 mm depth: 650 mm height: 1.610 mm
- input preasure: 8 bar
- suction works serial with Venturi-effect til max. 3m, otherwise an external suction is needing
- roll car with collection tray for 2 cans each 60 litres (120 litres)
- complete of VA-steel
- this cleaning system ist made to clean spraying guns with solvent automatically
- the serial configuration contains beside of the pistol holder for 2 guns 1 blow spray gun too
|
|

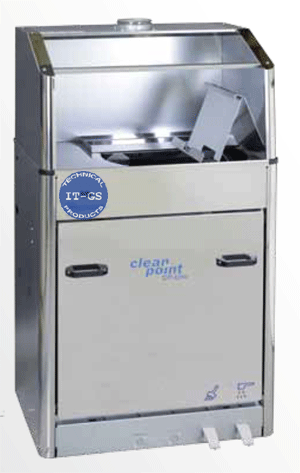

Manual
- width: 1.000 mm depth: 650 mm height: 1.610 mm
- input preasure: 8 bar, suction serial with Venturi-effect til max. 3m, otherwise an external suction is needing
- roll car with collection tray for 2 cans each 60 litres (120 litres)
- complete of VA-steel
- this cleaning system ist made to clean spraying guns with solvent manually
- the cleaning process will be realizzed by a solvent streamed washing brush
- the serial configuration contains beside of the washing brush, 1pistol holder for 2 guns and 1 blow spray gun too
|
|
Automatic multi functional - combination of manuel and automatic
This cleaning system is made for automatic and manuel cleaning cleaning of spraying guns with solvent. Automatic cleaning with a power box in 1-5 minutes.. The manuel cleaning process will be realizzed by a solvent streamed washing brush
- width: 1.000 mm depth: 650 mm height: 1.610 mm
- input preasure: 8 bar, suction serial with Venturi-effect til max. 3m, otherwise an external suction is needing
- roll car with collection tray for 2 cans each 60 litres (120 litres)
- complete of VA-steel
- the serial configuration contains beside of the pistol holder for 2 guns 1 blow spray gun too
|
|
Combination automatic + manuel
This complete solution works with full automatically washing machine and manuel washing device
- width: 1.000 mm depth: 650 mm height: 1.610 mm
- input preasure: 8 bar, suction serial with Venturi-effect til max. 3m, otherwise an external suction is needing
- roll car with collection tray for 2 cans each 60 litres (120 litres)
- complete of VA-steel
- the serial configuration contains beside of the pistol holder for 2 guns 1 blow spray gun too
|
|
Water based paint cleaner CP-Aqua
Cleaning station for manual cleaning of water borne paint guns and has the possibility to recycle the washing water |
|
| |
|
