Anti slip mats 250t per sqm

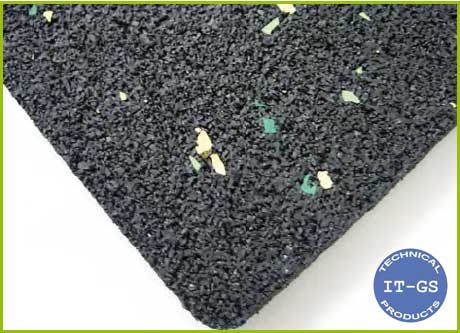

7210LS7210 LS+


is the mostly saled anti slip mat of IT-GS. By having a very good price/performance ratio this anti slip mat is available for the most transport applications. 7210 LS stands the test of several years and is a rubbing increased base, what will used of very much transport companies and shippers as standard.

Maximum loading
250 t/m² = 2,50 N/mm² by 8 mm thickness

slide adhesion factor µD
proofed by Fraunhofer IML. Different screen printing botoms from 26 mm thickness, EPAL euro-wood-palet, multible way,used .

Parallel to the skids µD = 0,86/0,91/0,80
lowest value = µD 0,80

cross to the skids µD = 0,78/0,91/0,80
lowest value = µD 0,78

lowest value total= µD 0,78

In addition in a DEKRA-Test was measured the situartion of 7210 LS with paper coils. Result: 7210 LS is available as safety part according VDI 2700 /9. If you need it, we can send the DEKRA-certifikate to you.

IT-GS do not annonce slide adhesion factors, what are not prooved. Because the slide adhesion factor of rubbing increased base is addicted form the used material copulation, the temperature, the condition of the material surfaces and the anti slip mat (dirt, wetness, and so on). To arrive the optimal slip inhibition, the contact areas, that means loading and bottom, have to be well swapt, clean, free of fat and dry.

Material: anti slip mat on SBR/NBR-base

Colour: black with green, light green and yellow colour particles

Area weight: approx. 5,6 kg/m² by 8 mm thickness

Volume weight: approx. 720 kg/m³

Tenacity: 0,80 N/mm² DIN 53571, proof body B

ultimate elongation : 60 % DIN 53571, proof body B

Temperature resistance: - 40 °C til 115 °C

Fire behavior: B2 DIN 4102


Stability
By having cracks, holes, crushes, contact with oil, gaz, chemicals and so on, 7210 LS cann´t used longer and have to be changed.

Stability
UV-light, sodium chloride, low acid and bases, (swelling by carbon hydride, like oil und gaz and more.).

Cleaning
shake out, suck, wash, may be with high pressure cleaner.

Recycling: waste key no. 070299

Delivery condition: rolls, plates, pre-cut according your wish

Thickness: 3 - 20 mm
